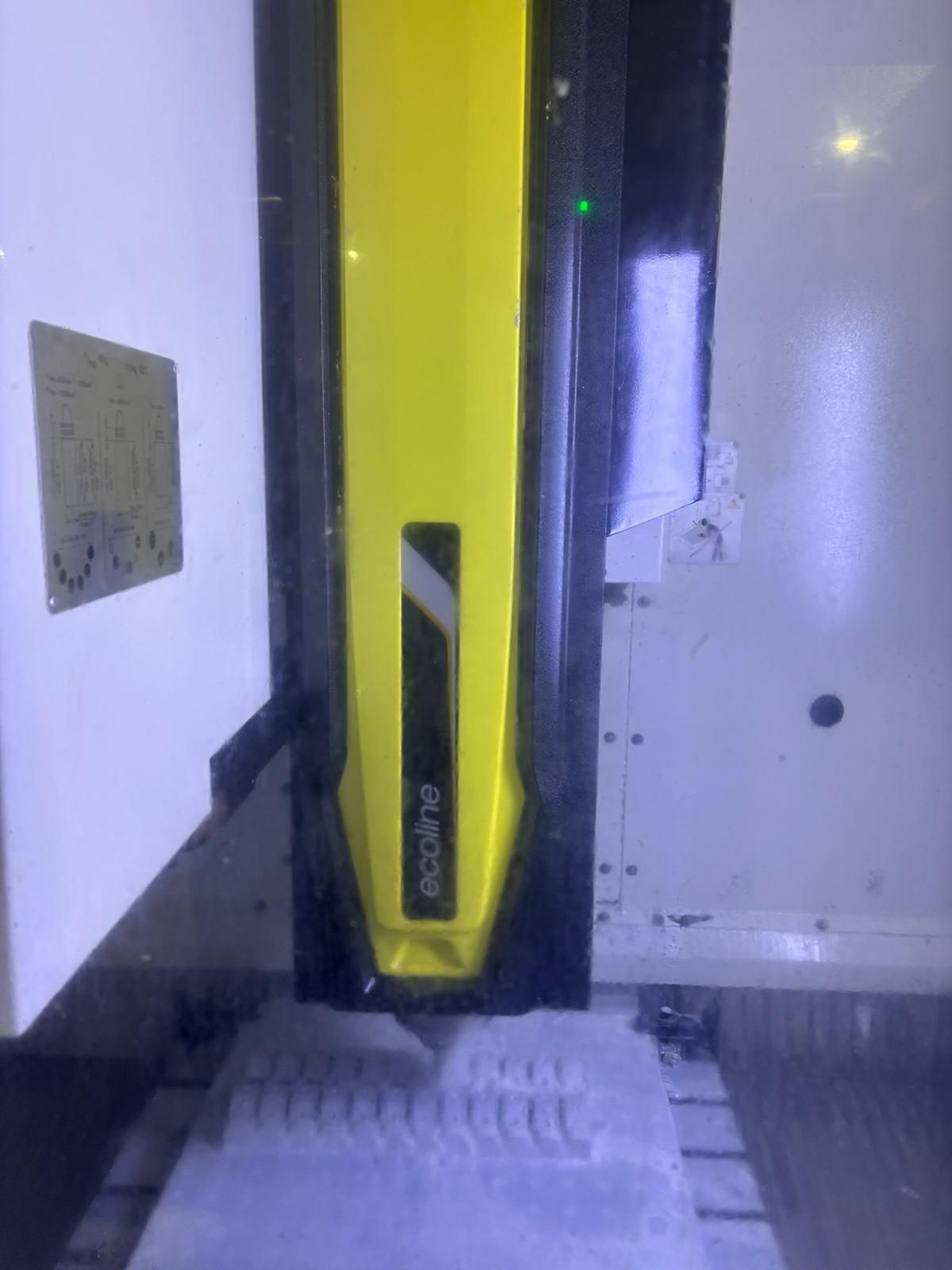

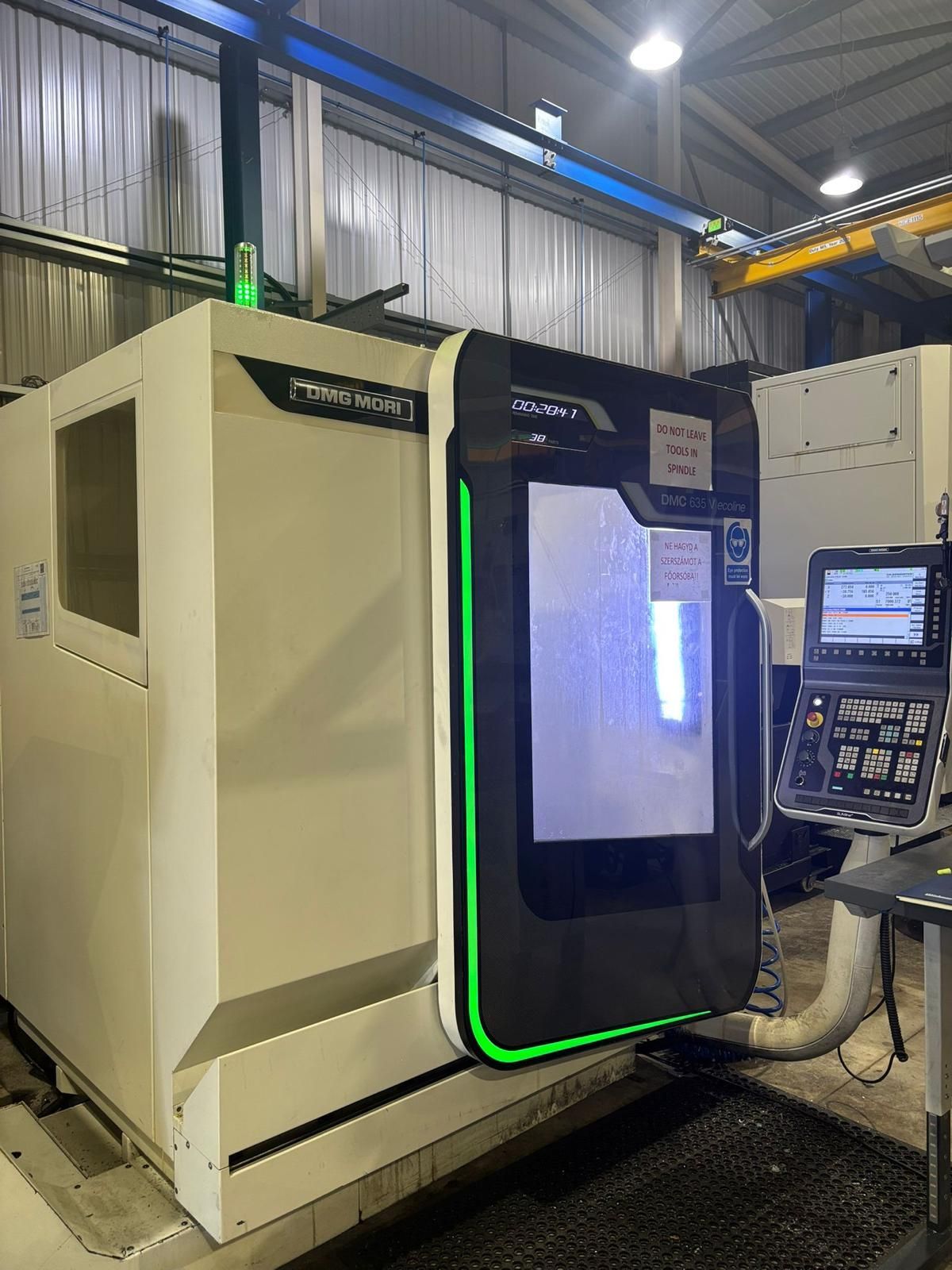

DMG DMC V ECOLINE MACHINING CENTER. Year of Manufacture 2013.
Technical Specification:
Number Of Axes: 3 (X,Y,Z)
Feed In The X/Y/Z Axis: 635/510/460 Mm
Accelerated Feed In The X,Y,Z Axis: 25 M/Min
Worktable Surface (Length X Width): 790 X 560 Mm
Maximum Worktable Load: 600 Kg

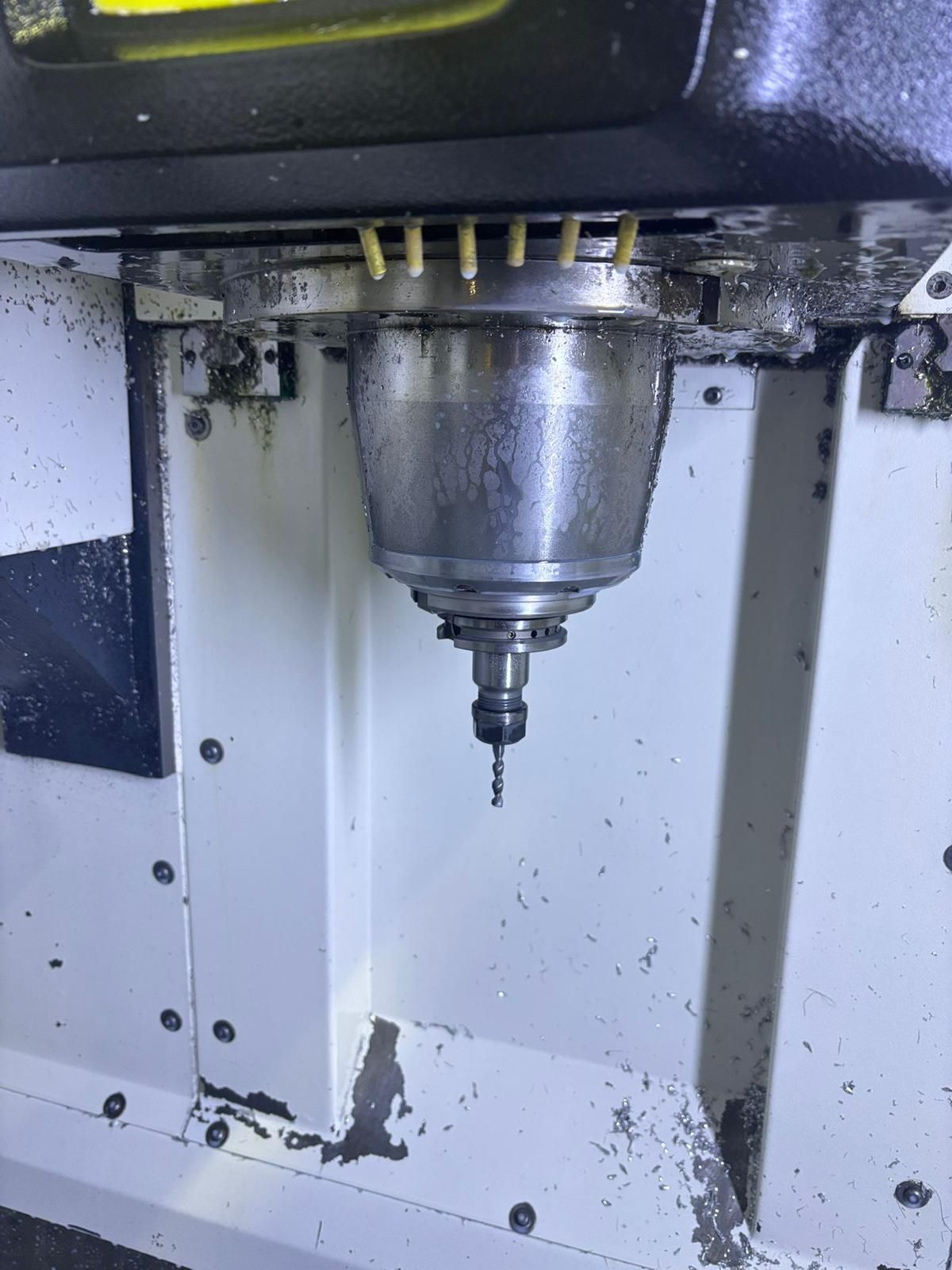

Maximum Spindle Speed: 8000 Rpm
Maximum Distance Of The Spindle Tip From The Table: 580 Mm
Minimum Distance Of The Spindle Tip From The Table: 120 Mm
Maximum Diameter Tools: 80 Mm
Complete With:
CNC control: SIEMENS SINUMERIK 840D
DMG MORI SLIMline touch control panel with 3D module
20-position tool magazine

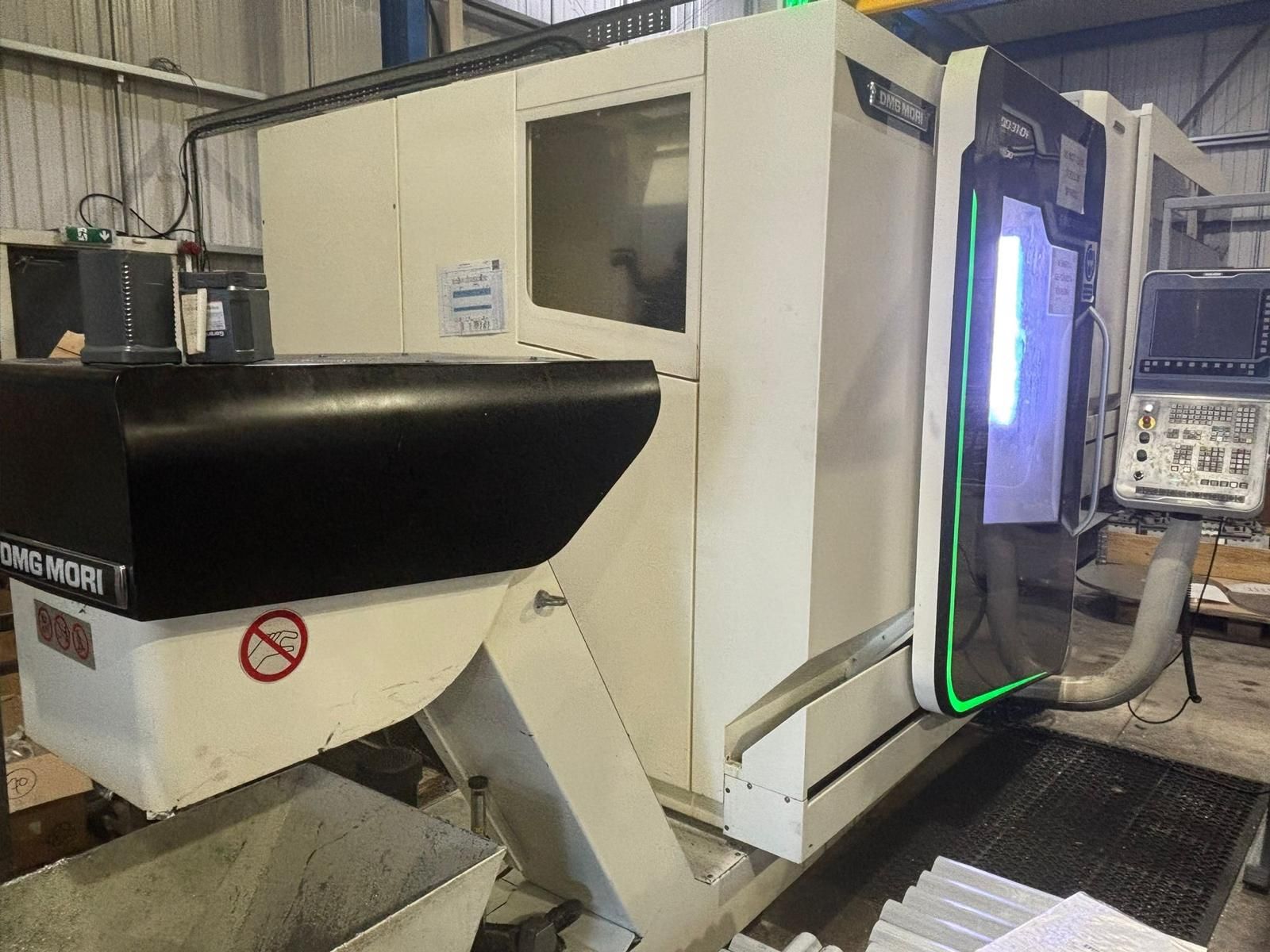

chip conveyor integrated with the machine
working space lighting
