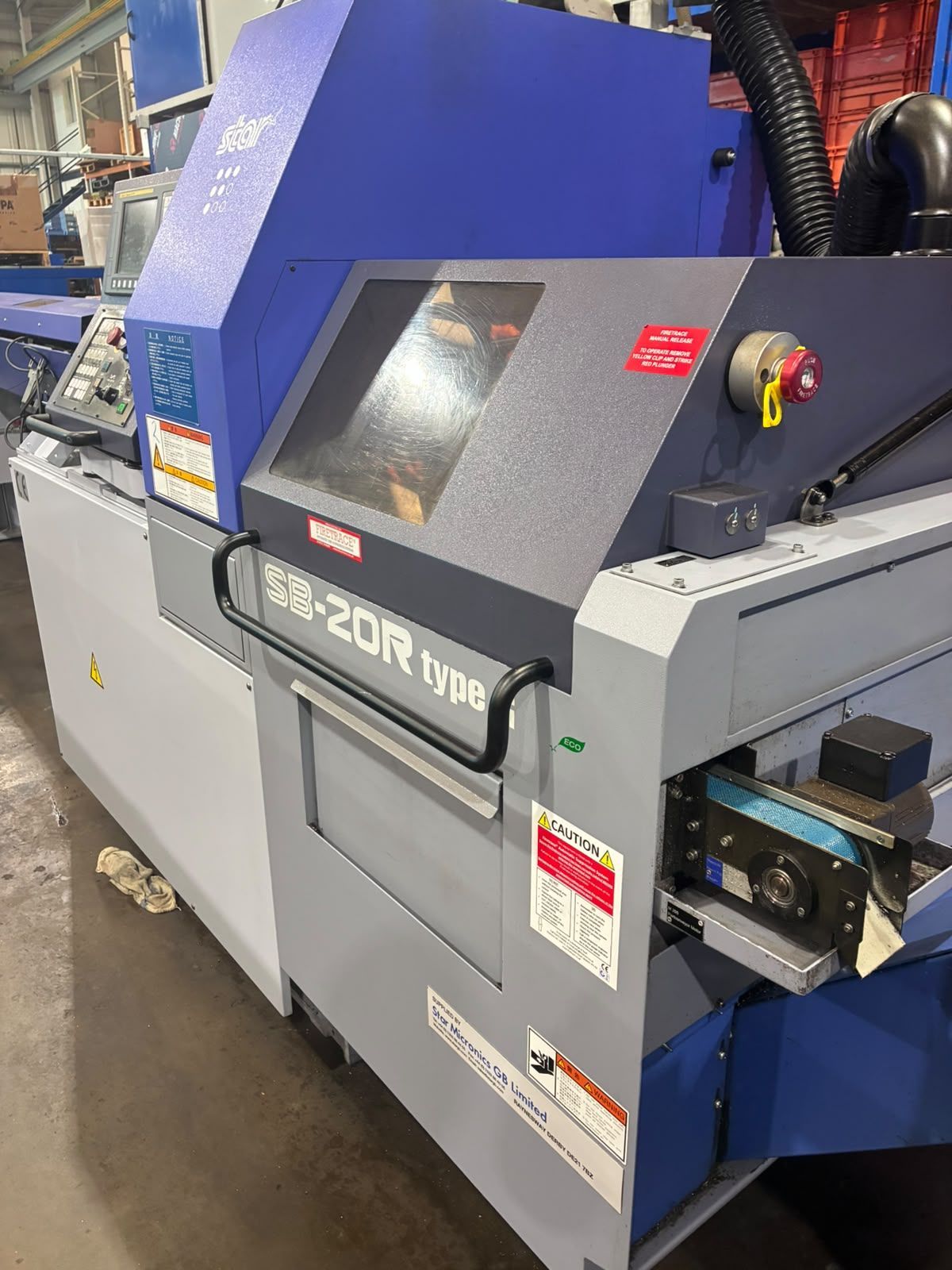

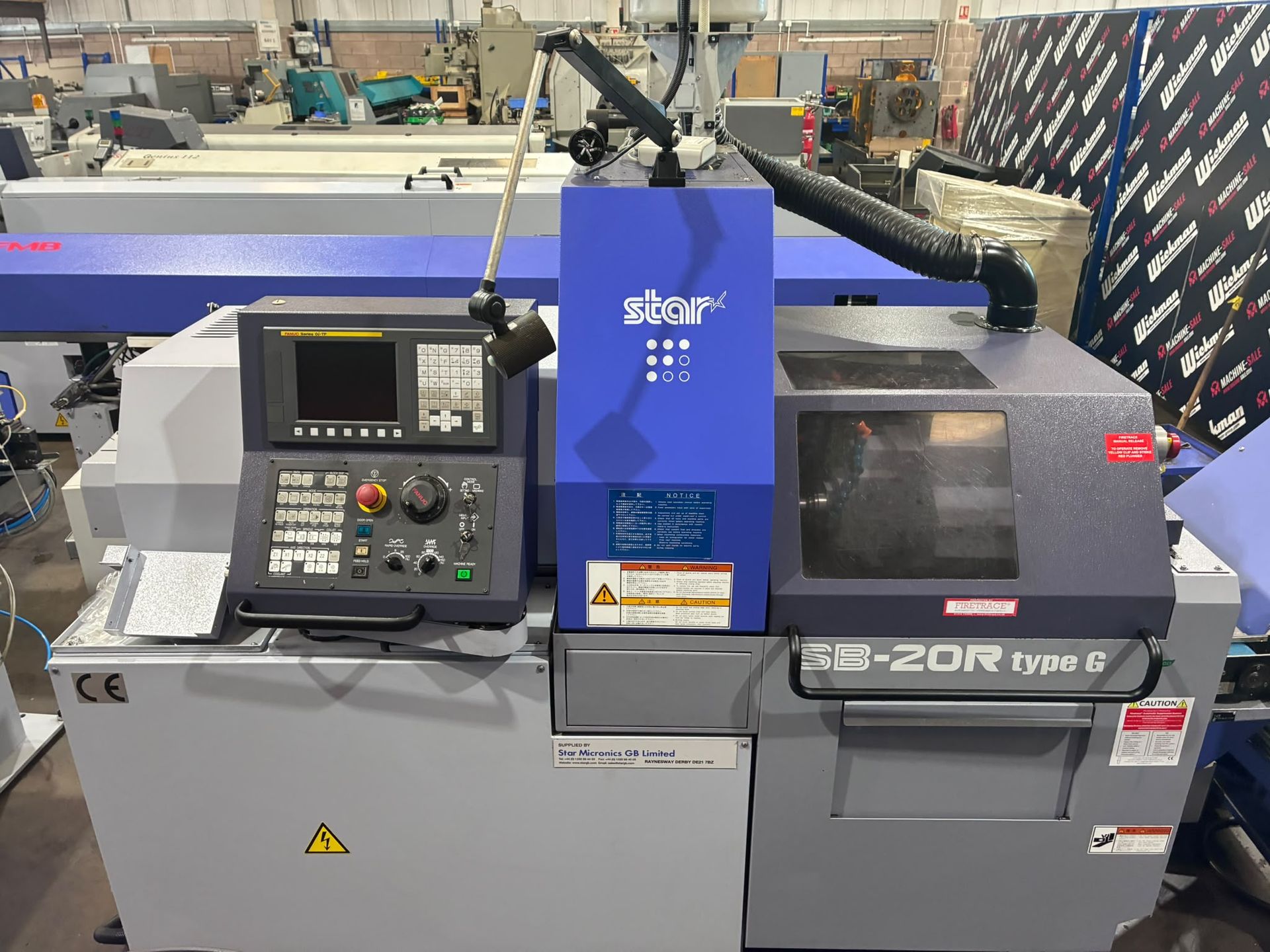

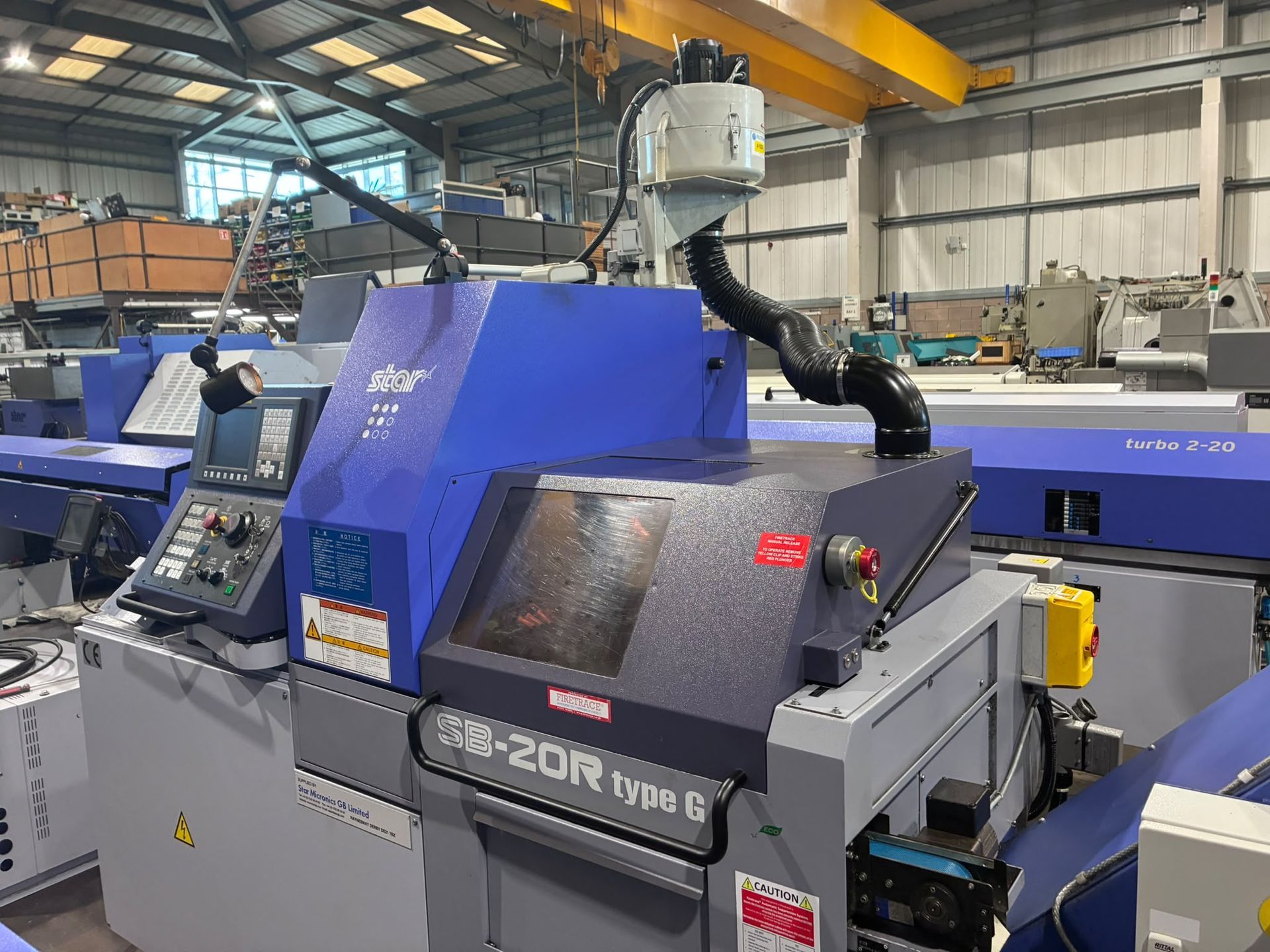

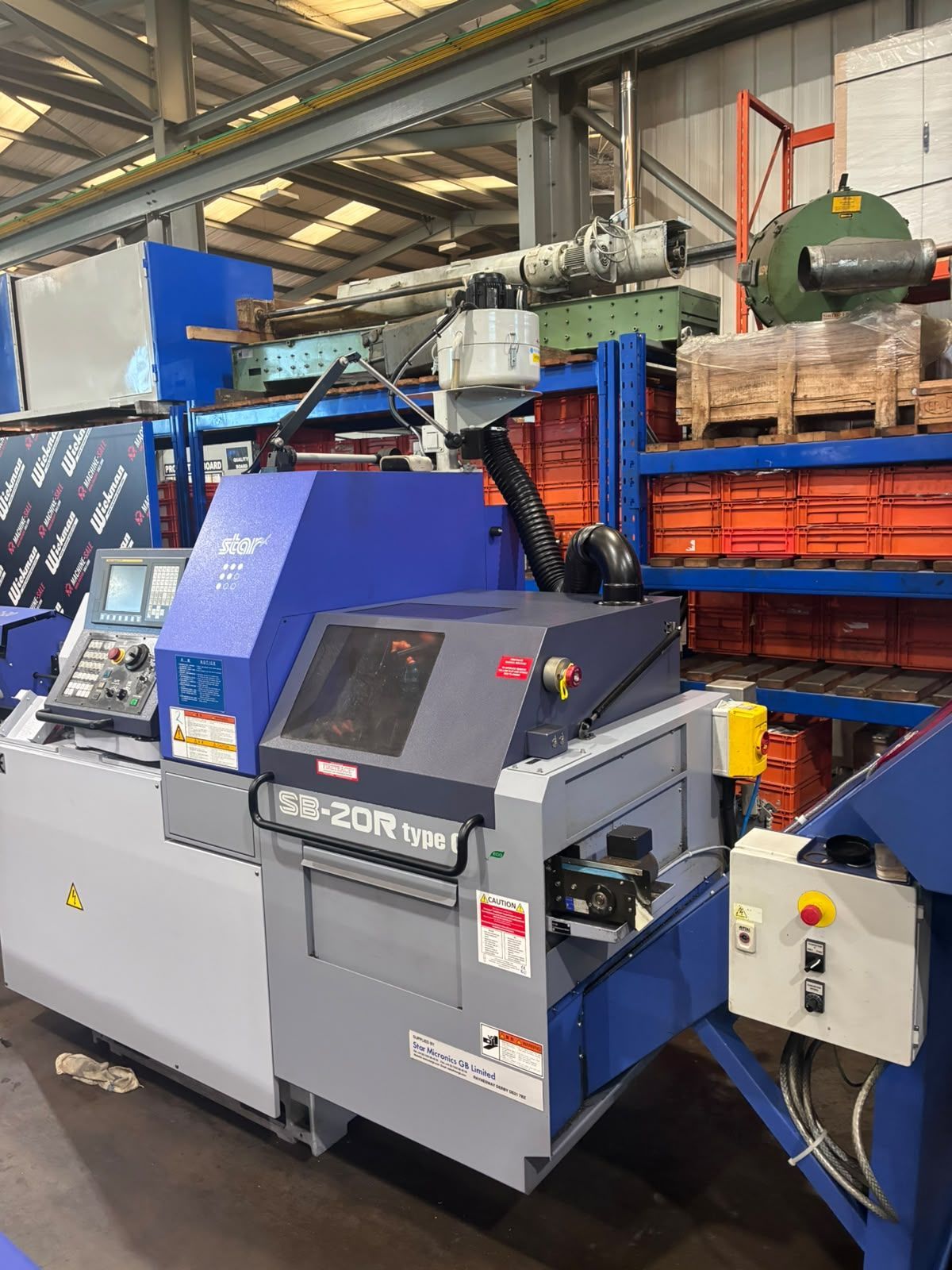

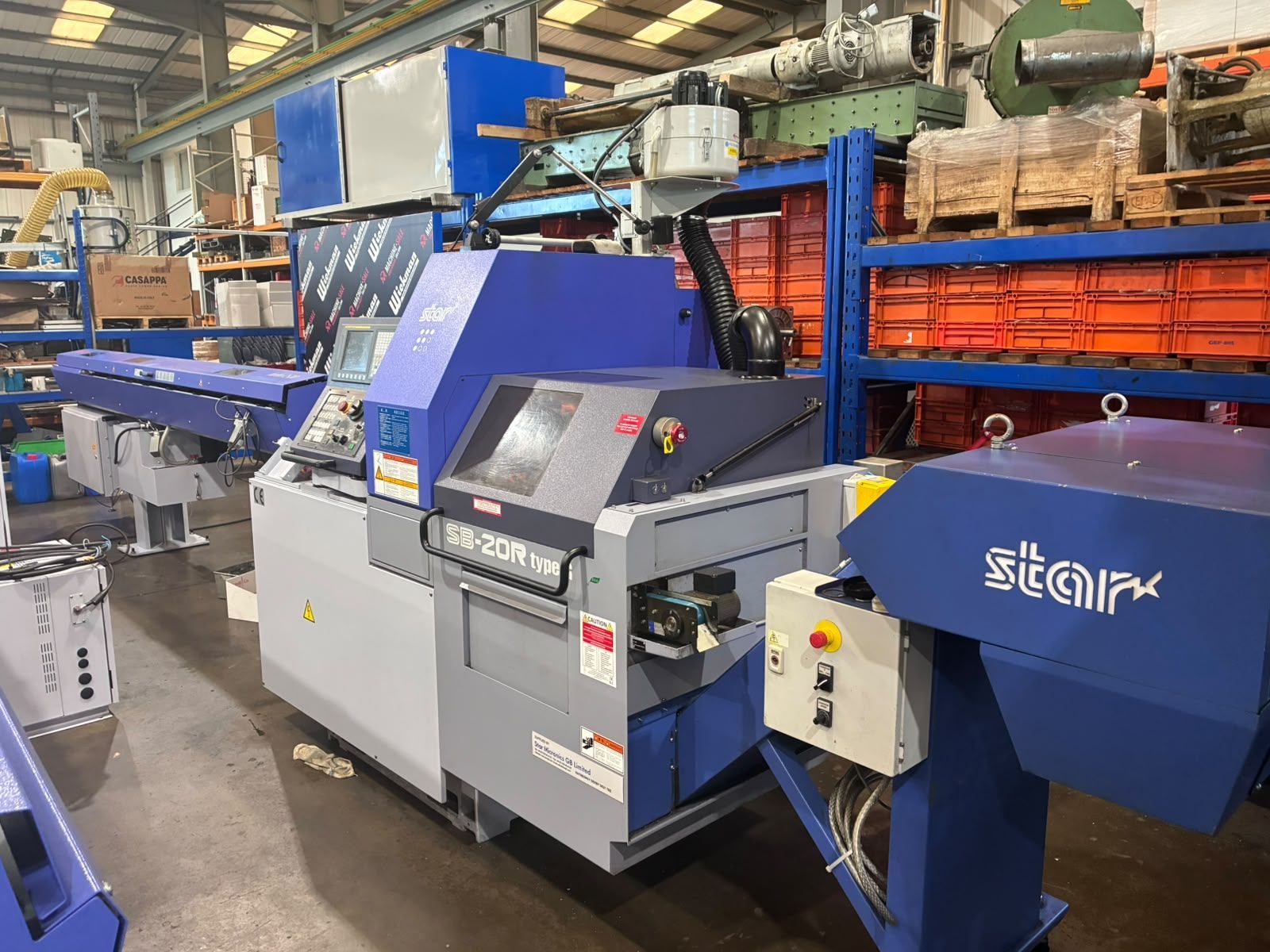

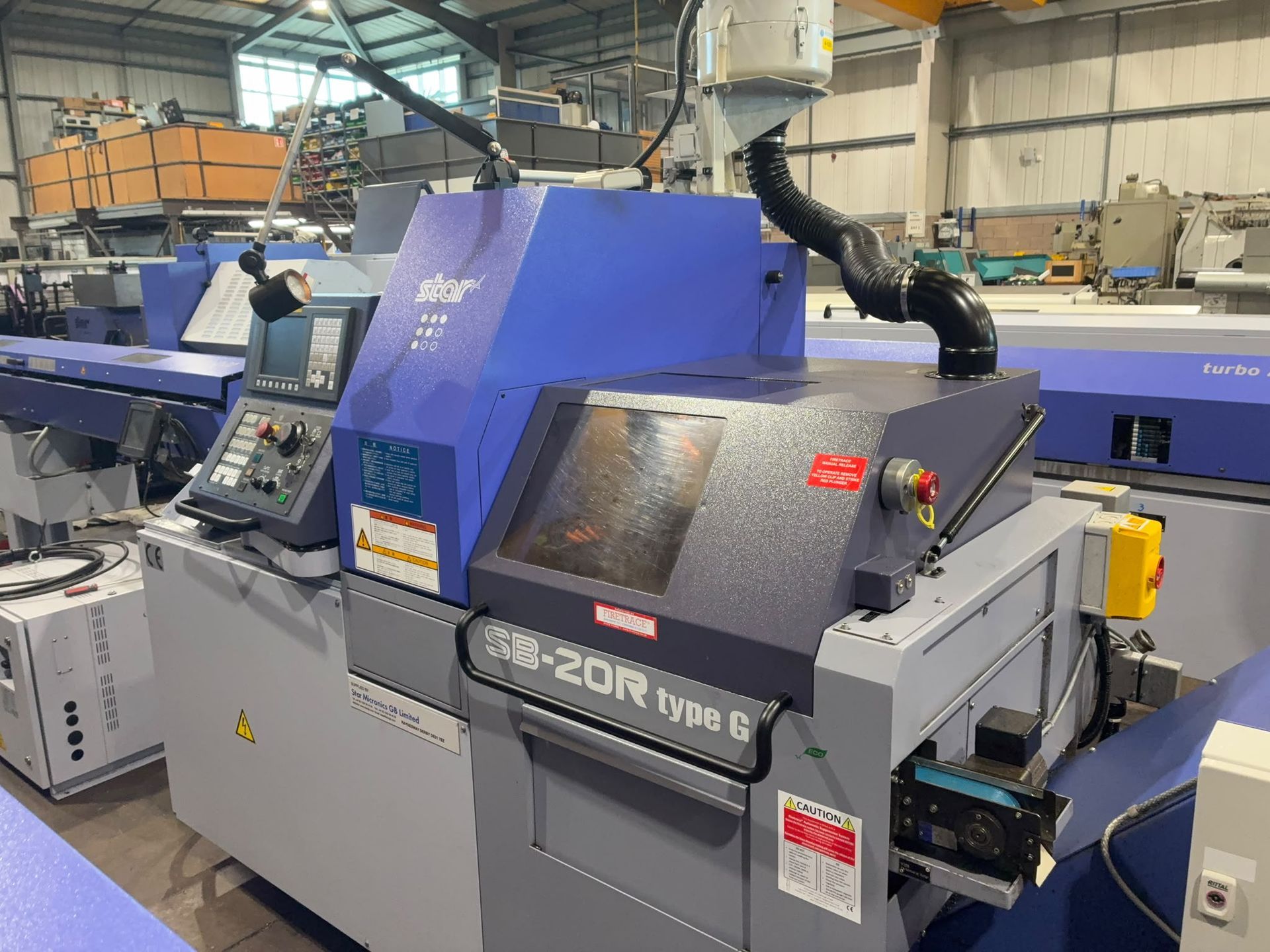

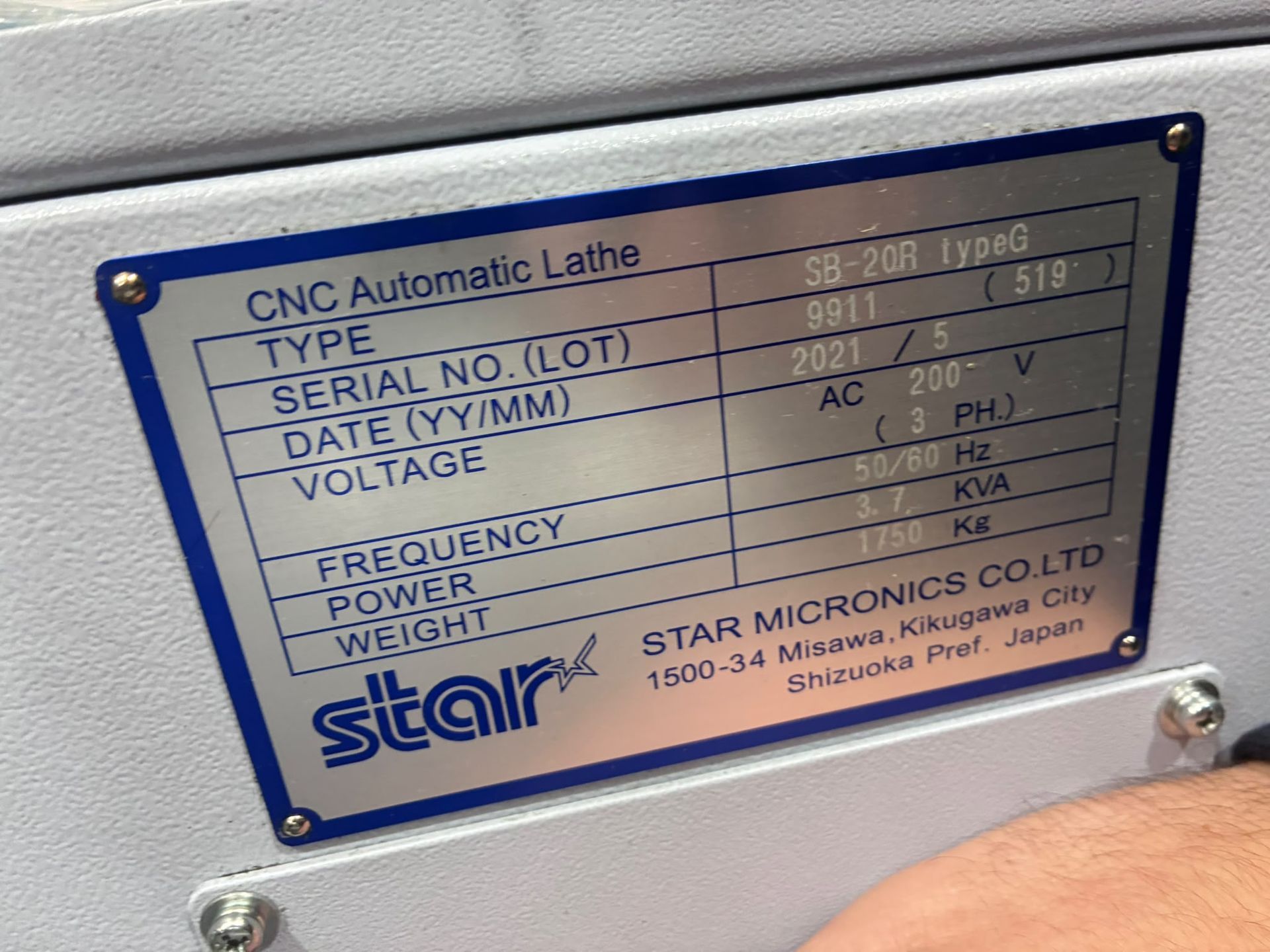

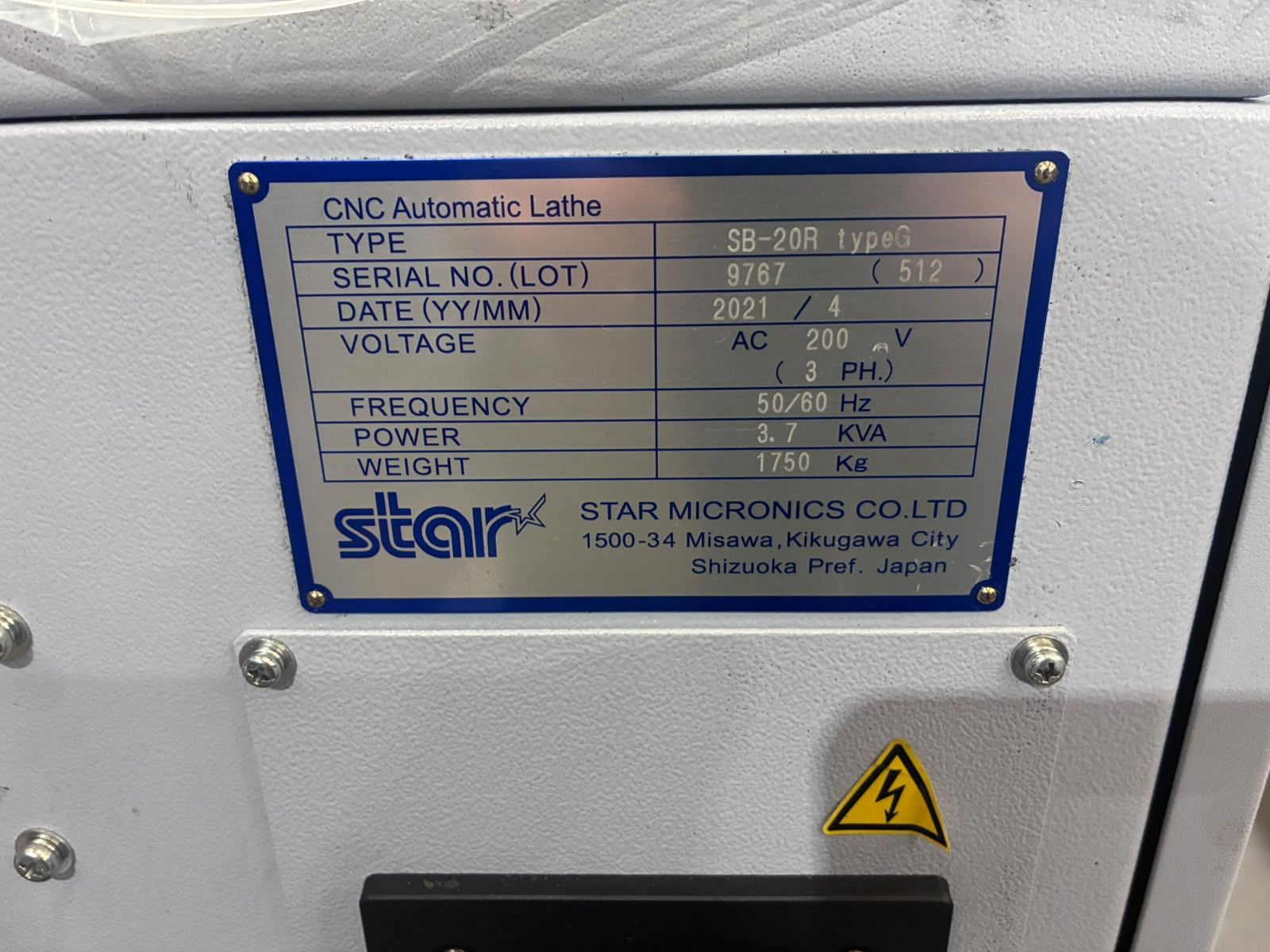

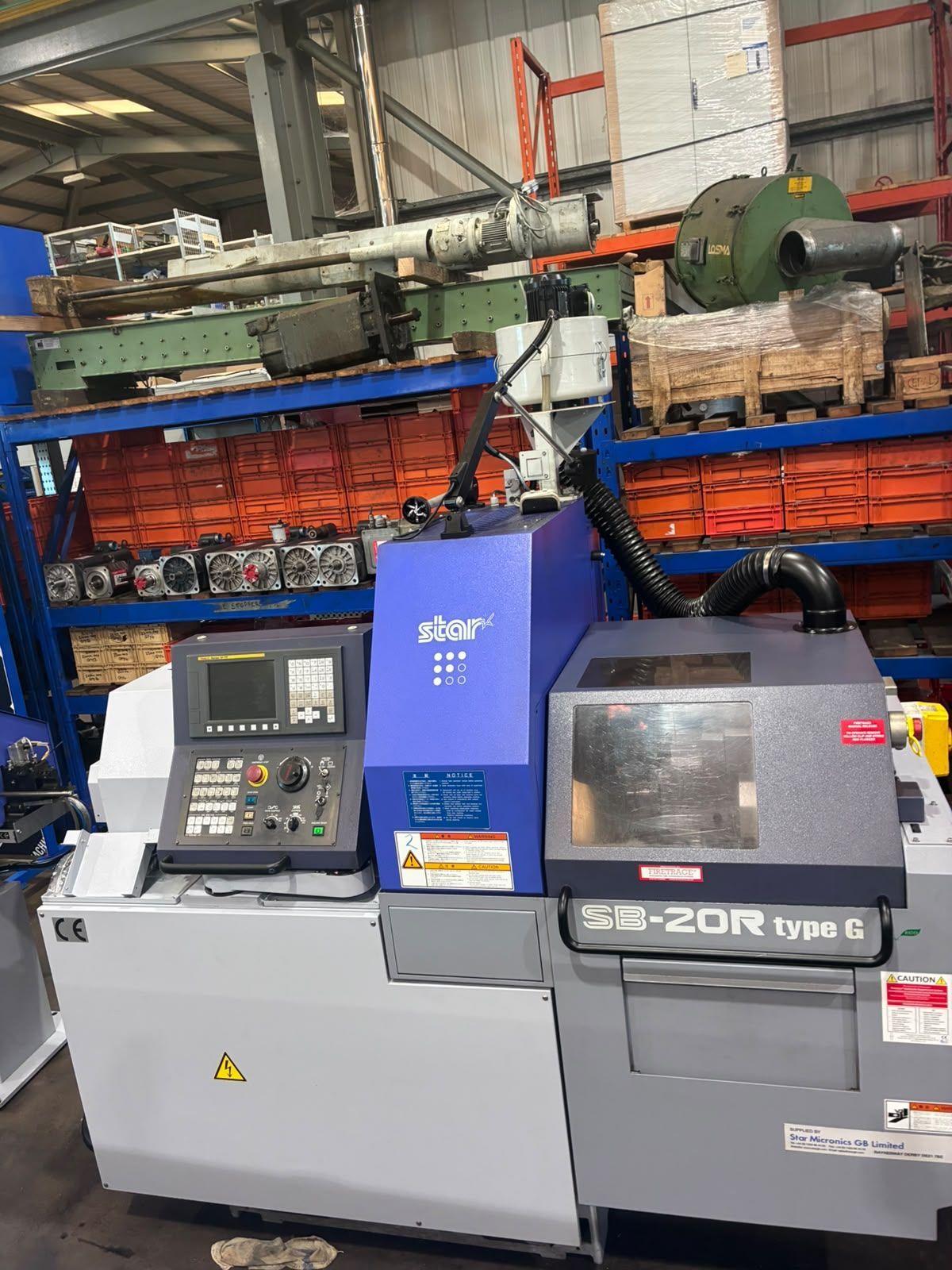

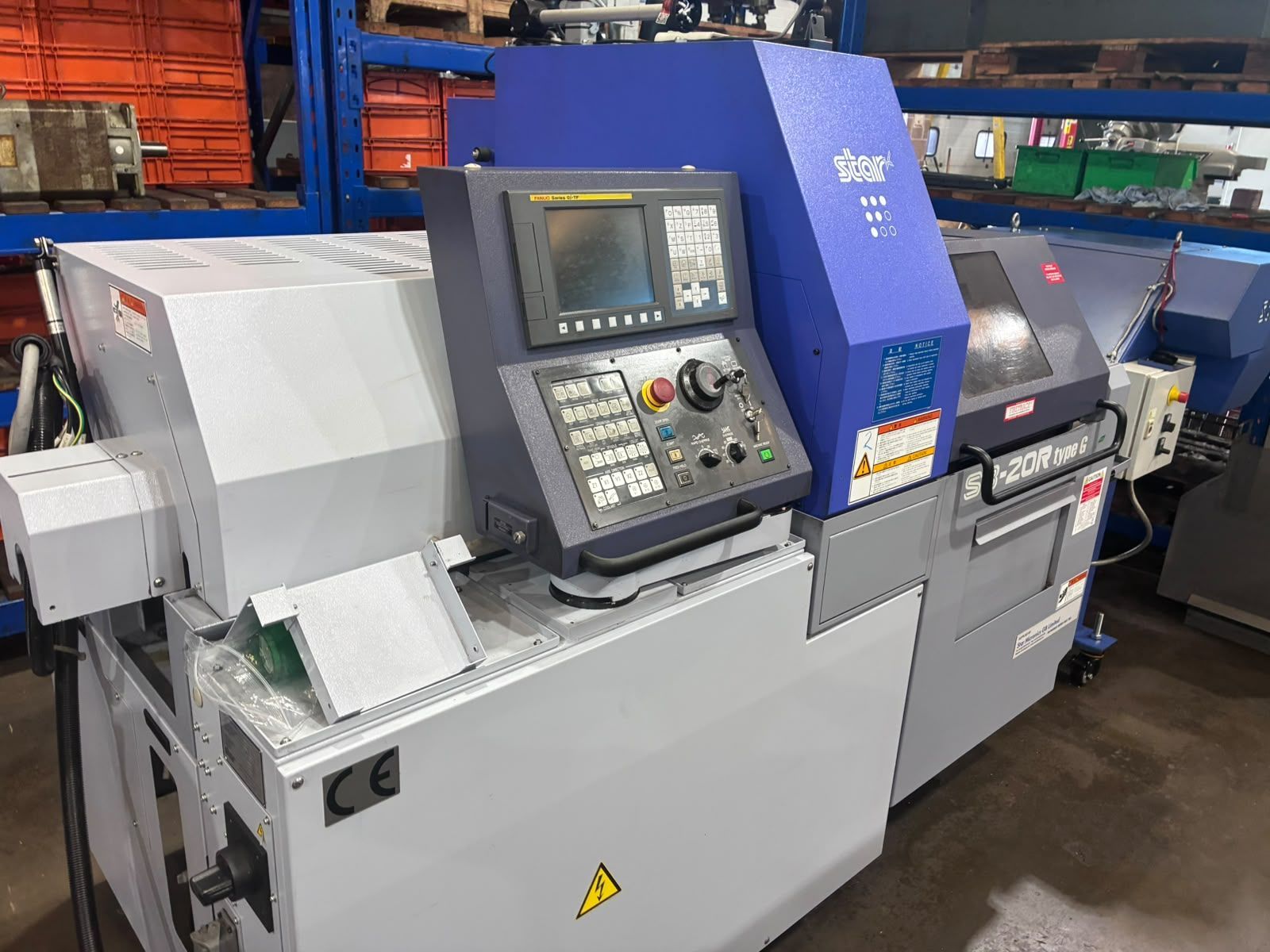

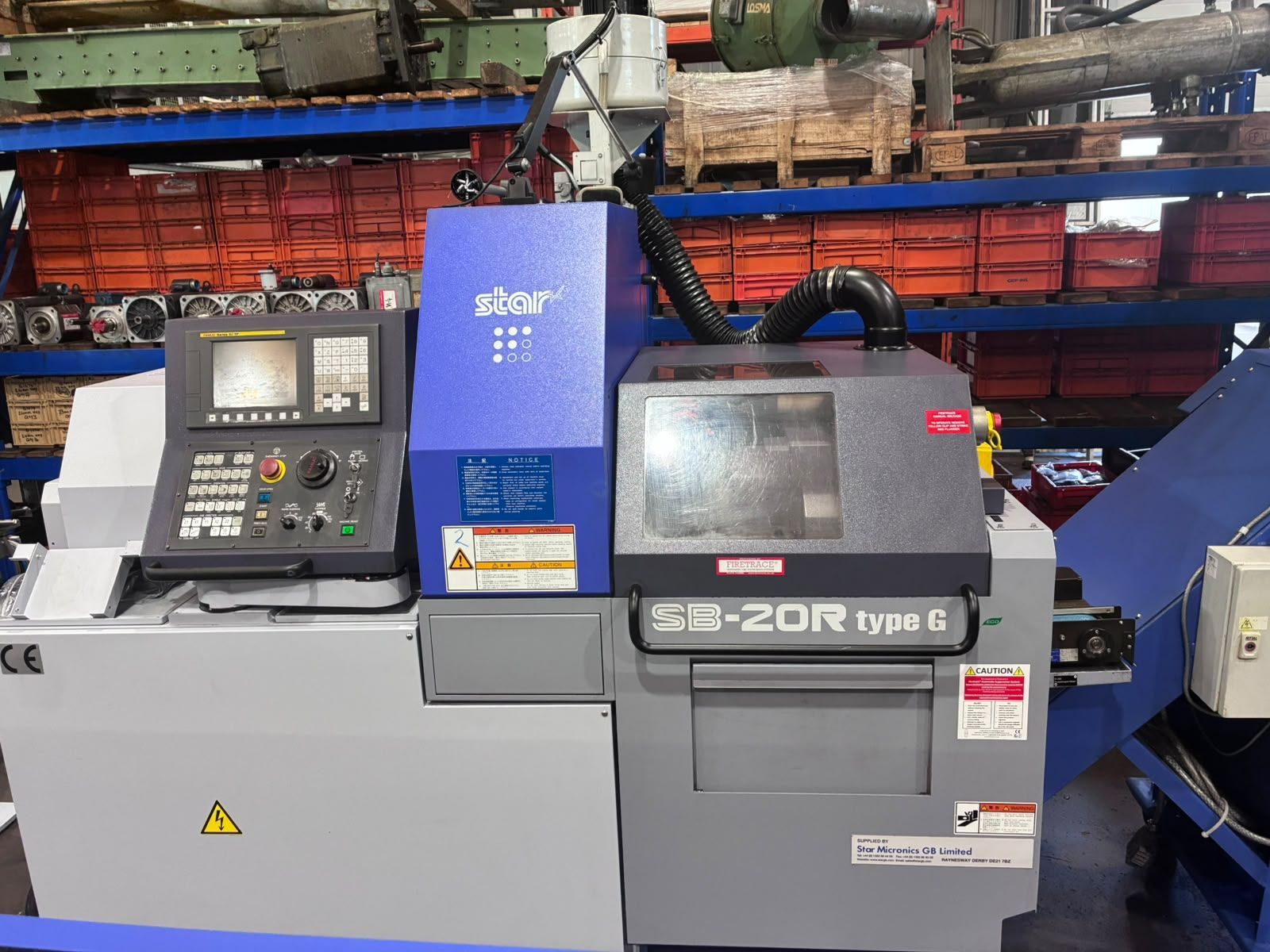

STAR SB-20R Type G CNC Sliding Head
Year of Manufacture: 2021
Quantity: Two
Complete With:

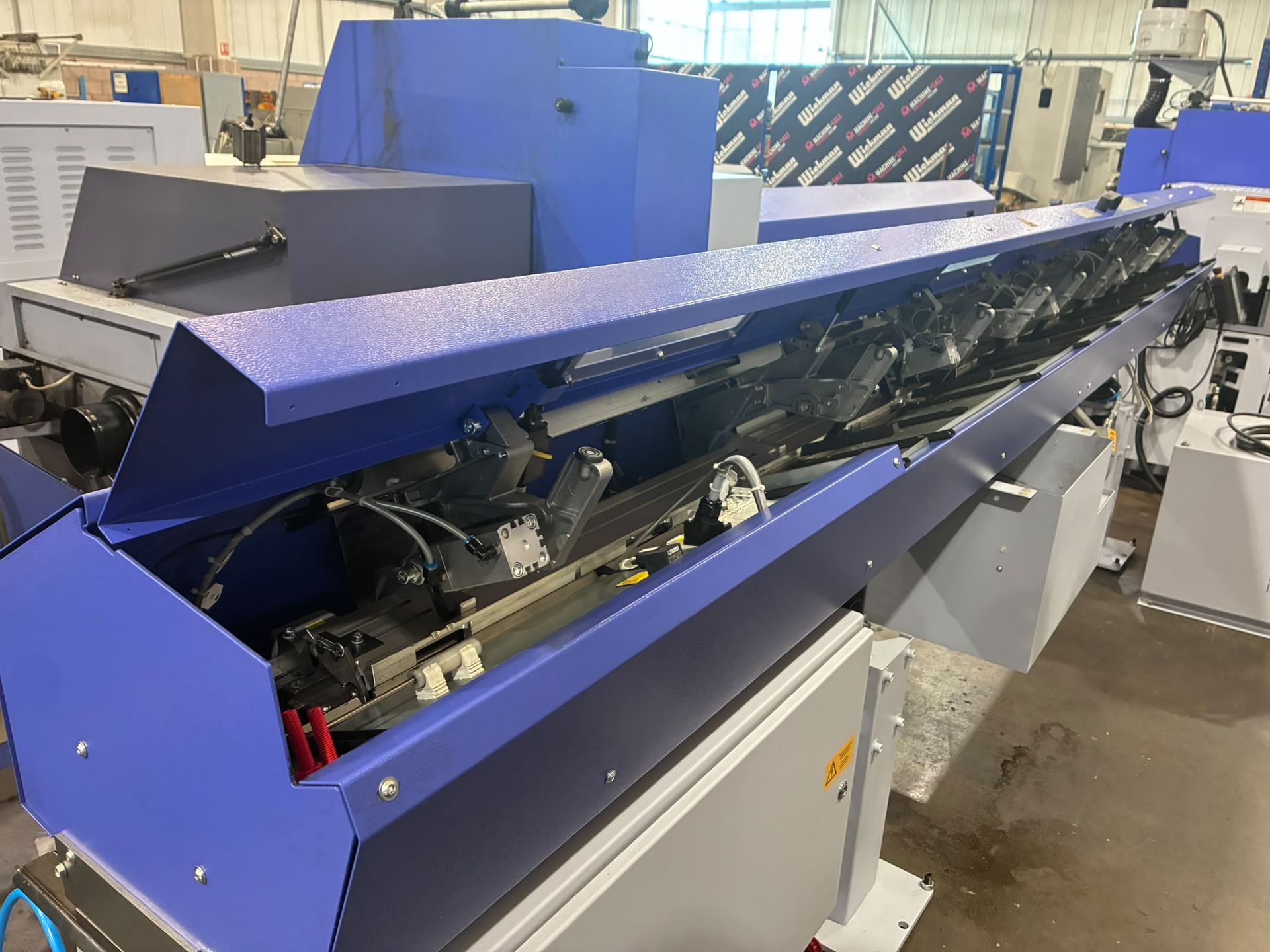

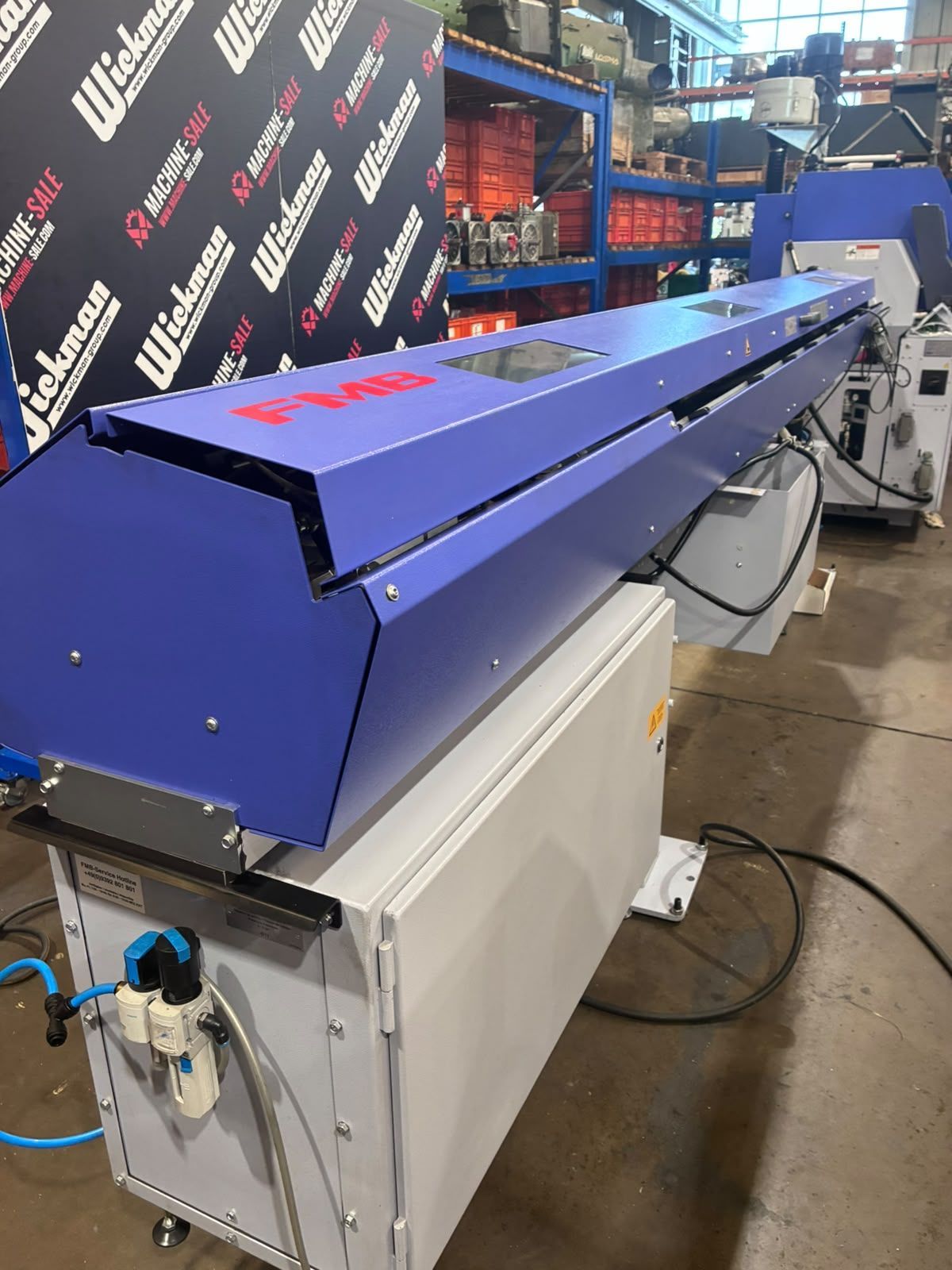

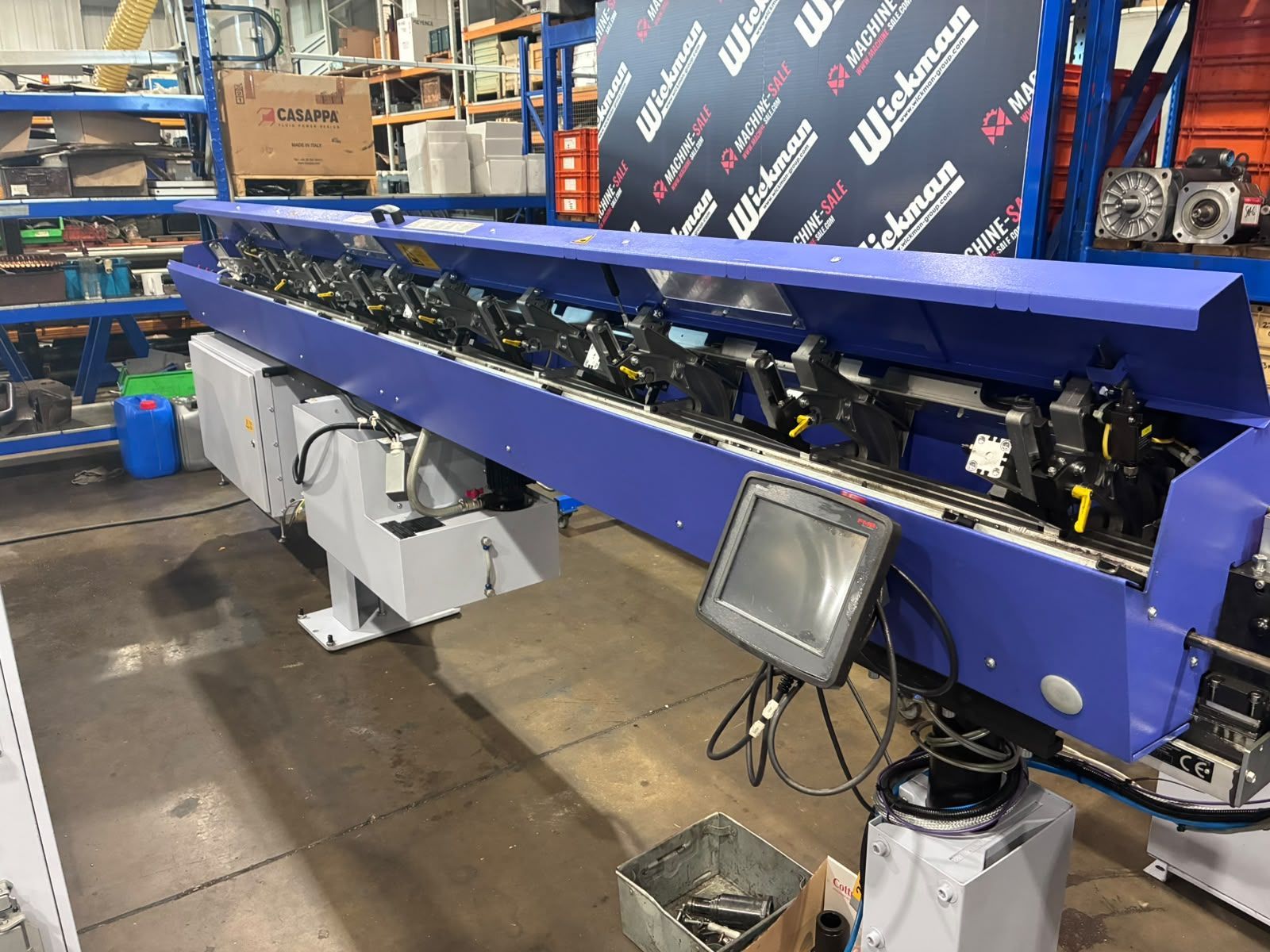

- FMB Turbo 2-20, 3.2m Magazine Bar Feeder

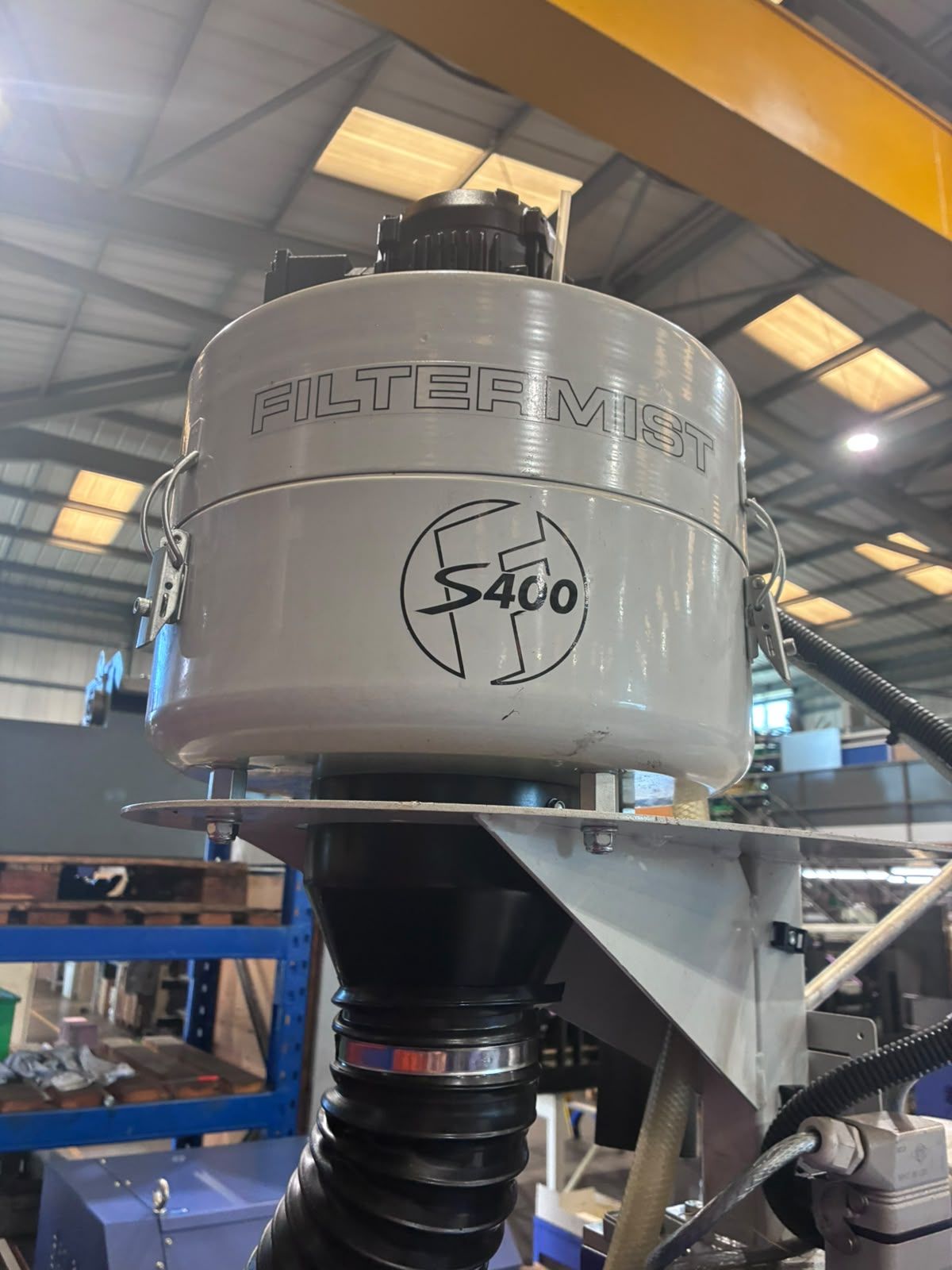

- Filtermist FX Extraction
- LNS MH500 Turbo Swarf Conveyor
- Selection of tooling & workholding
- 20 mm bar capacity
The
Star SB-20R Type G is a versatile 20 mm CNC sliding-head lathe designed for the accurate and efficient production of complex turned components.
Featuring
twin-spindle machining, driven tooling and C-axis control, the machine is well suited to subcontract machining and high-volume precision component production. It can also operate in
guide-bush or non-guide-bush configuration, providing additional flexibility across different component lengths and applications.
Key Specification:
- Maximum machining diameter: Ø20 mm
- Maximum headstock stroke: 205 mm
- Main spindle speed: 10,000 rpm
- Sub spindle speed: 9,000 rpm
- Main & sub-spindle C-axis control
- Rapid traverse: 35 m/min

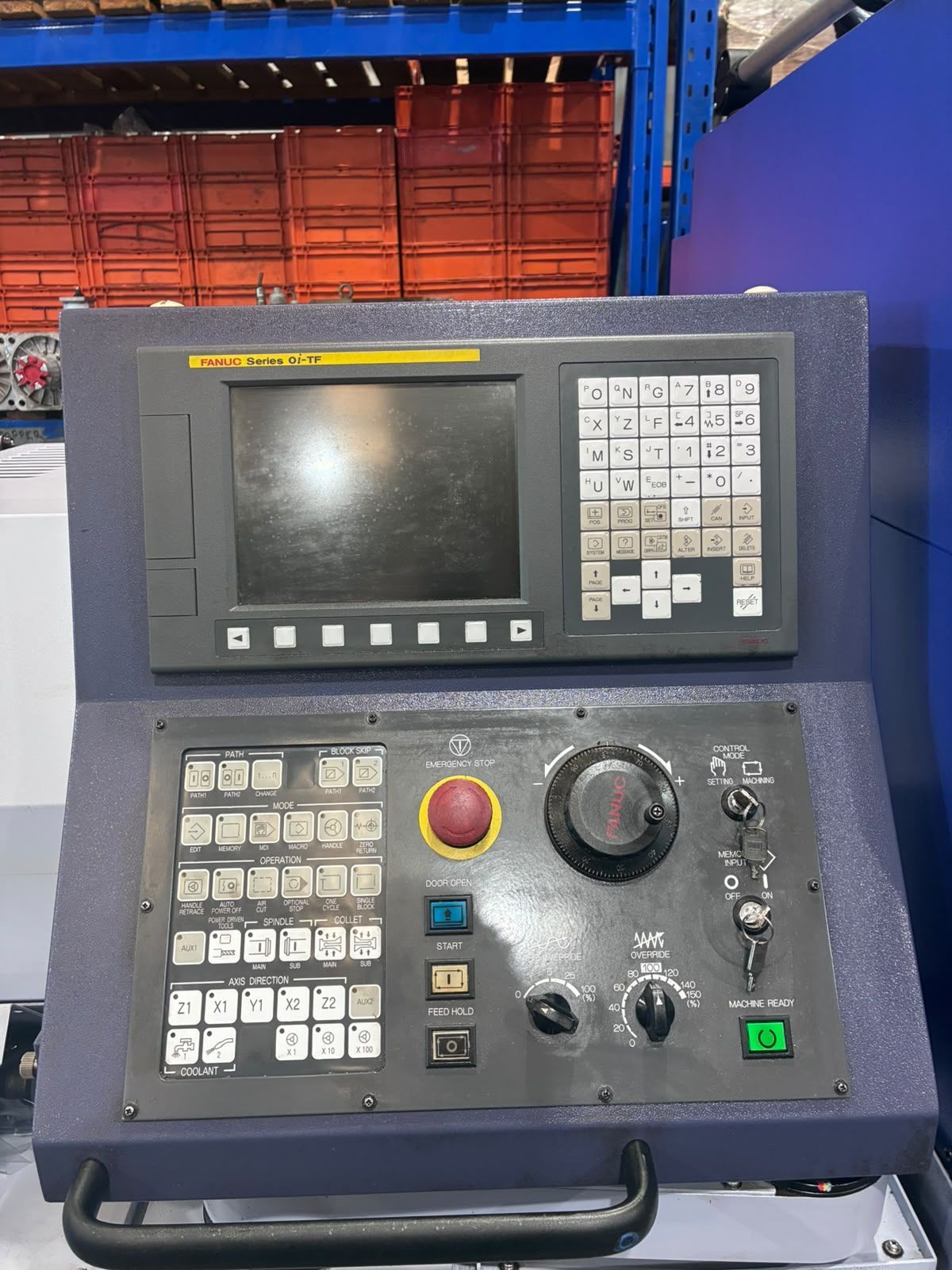

- FANUC 0i-TD CNC control
- 8.4” colour LCD
- Approx. machine weight: 1,750 kg

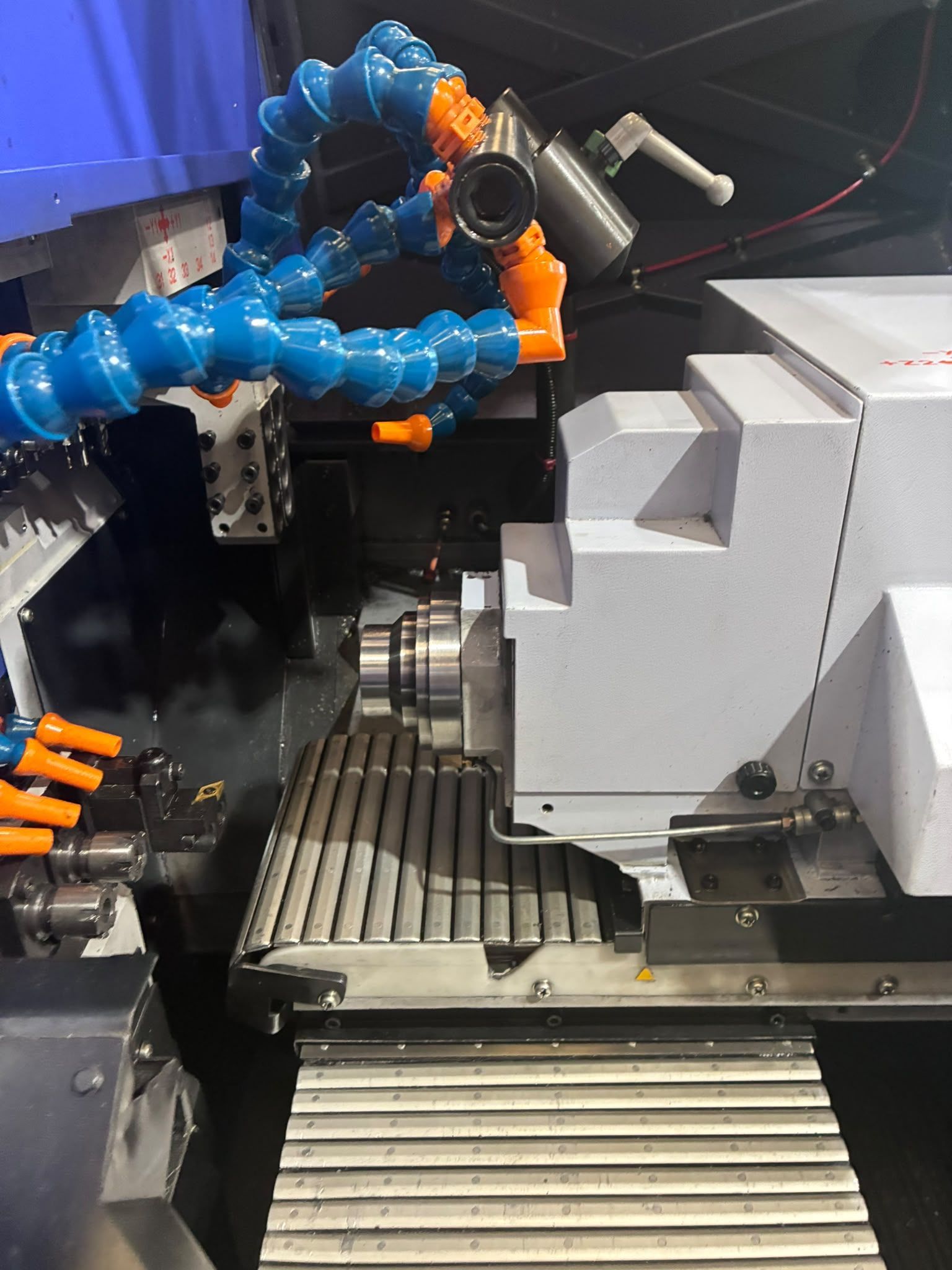

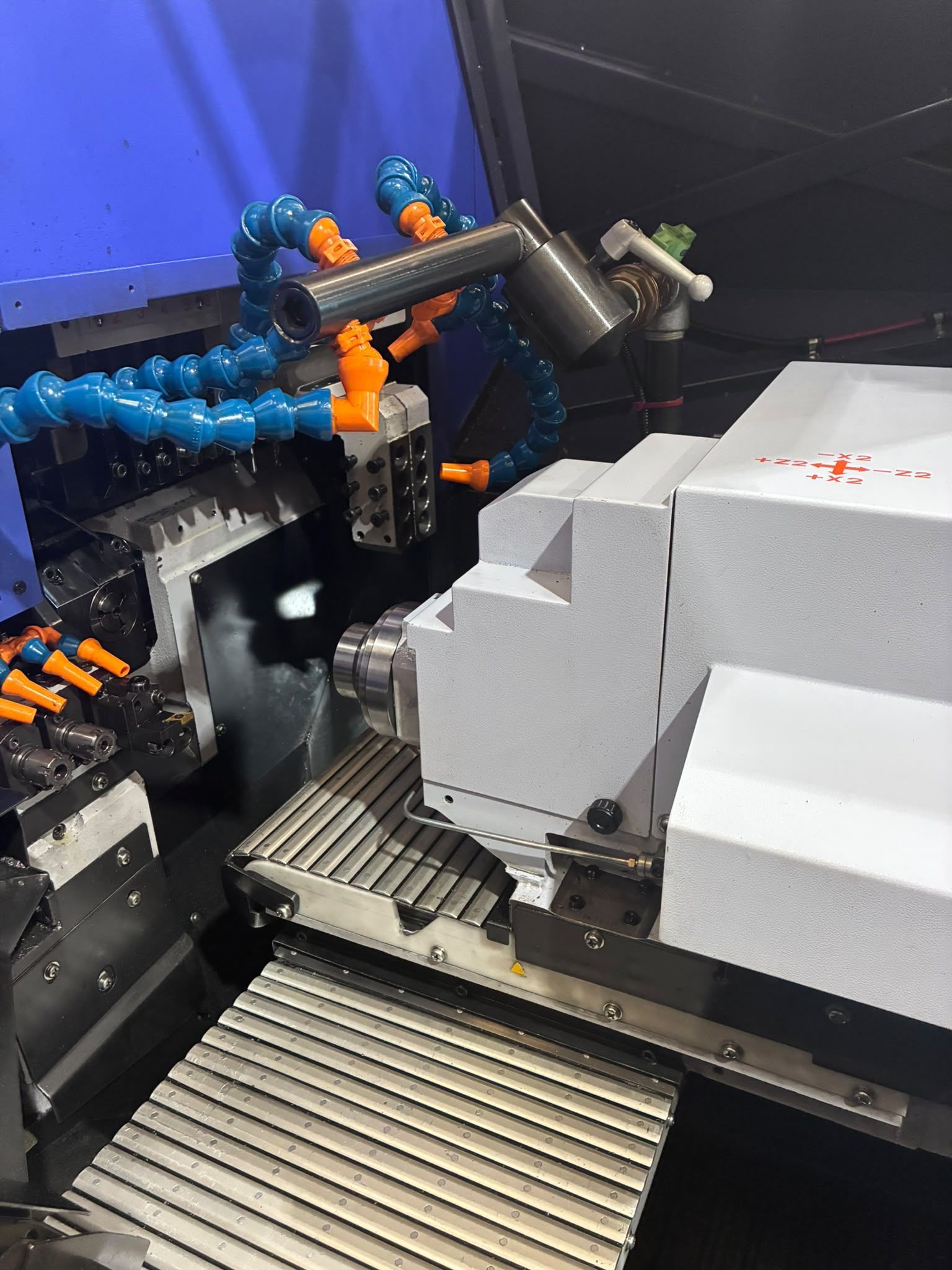

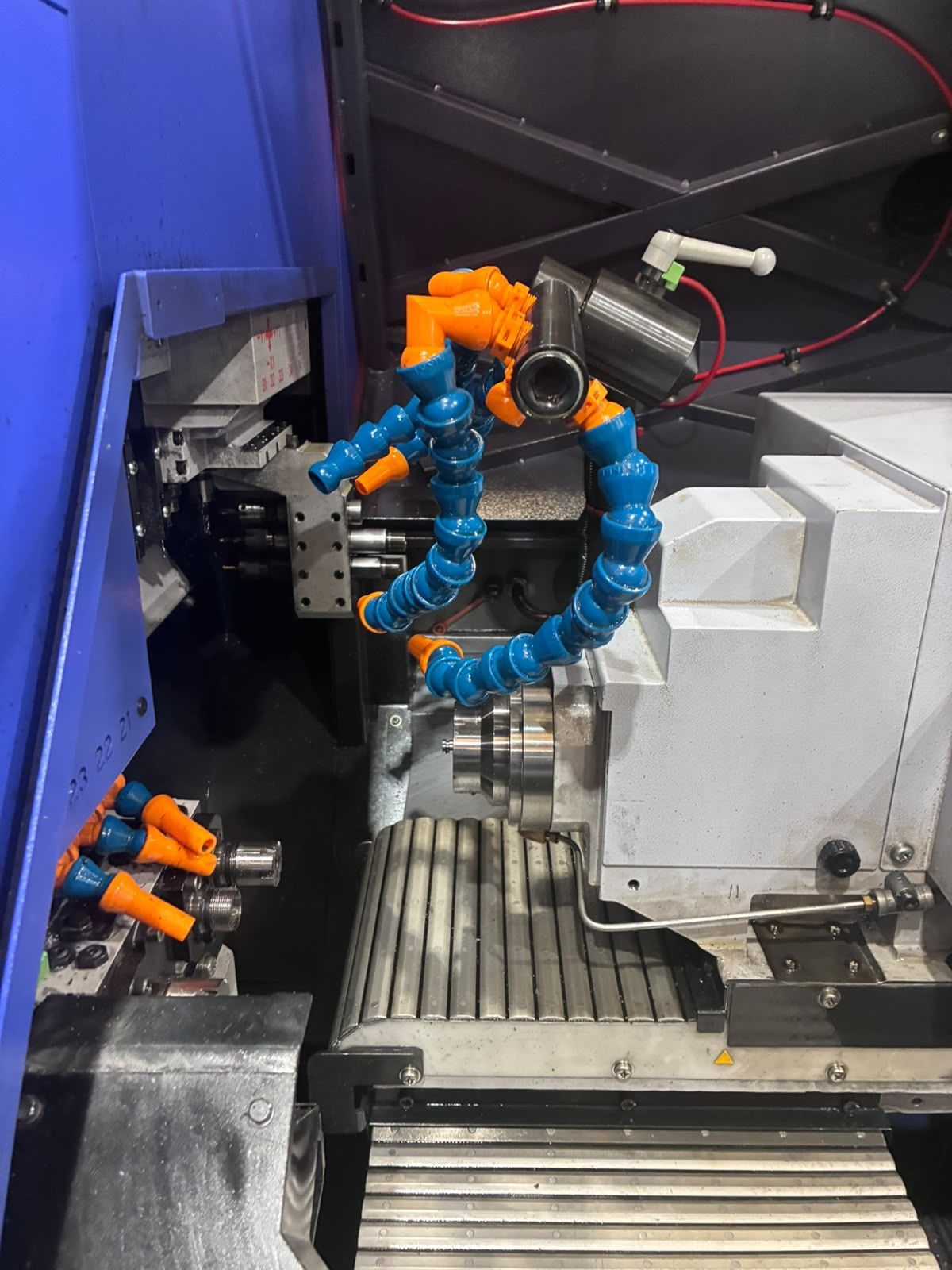

Tooling Capabilities:

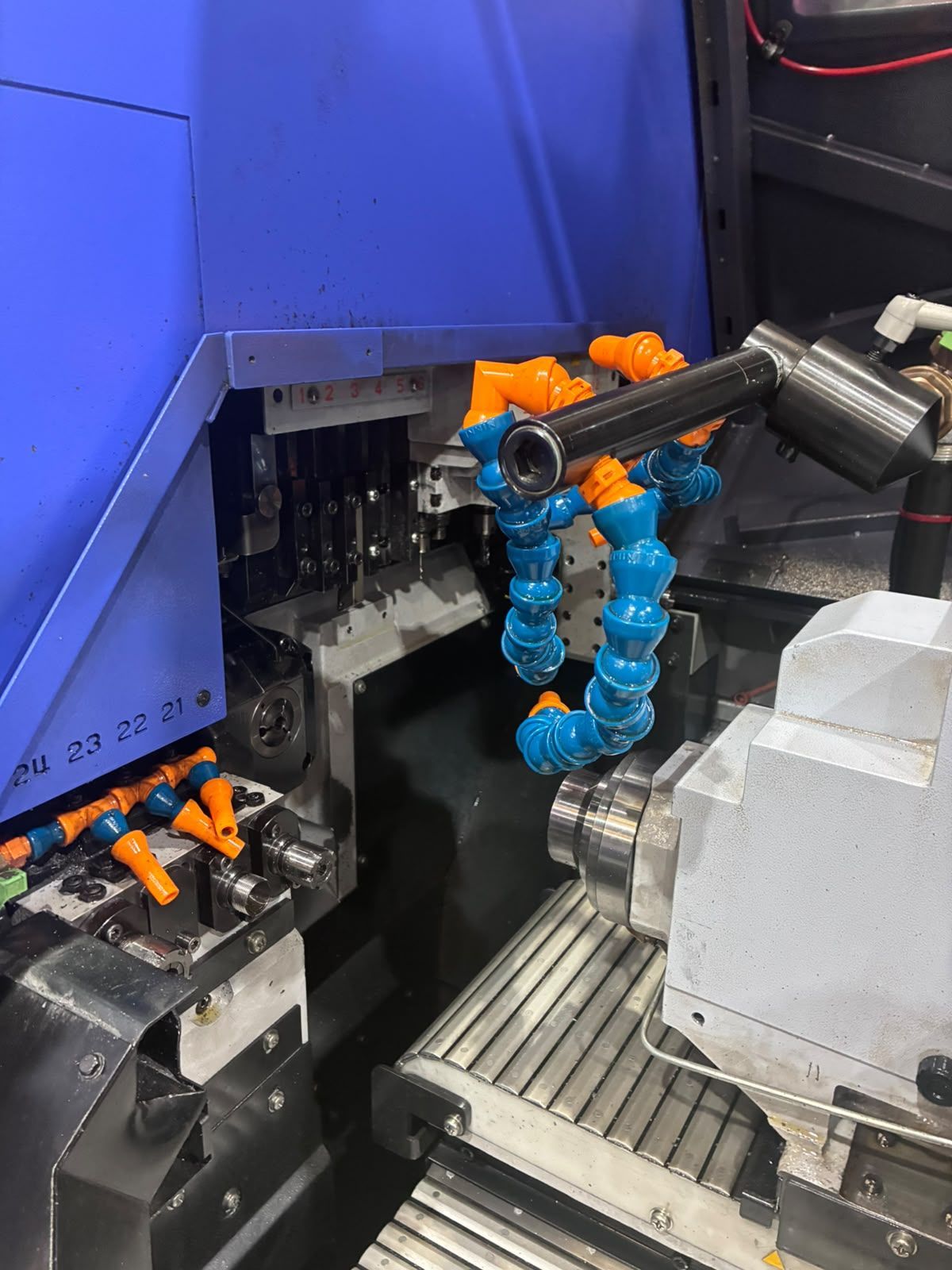

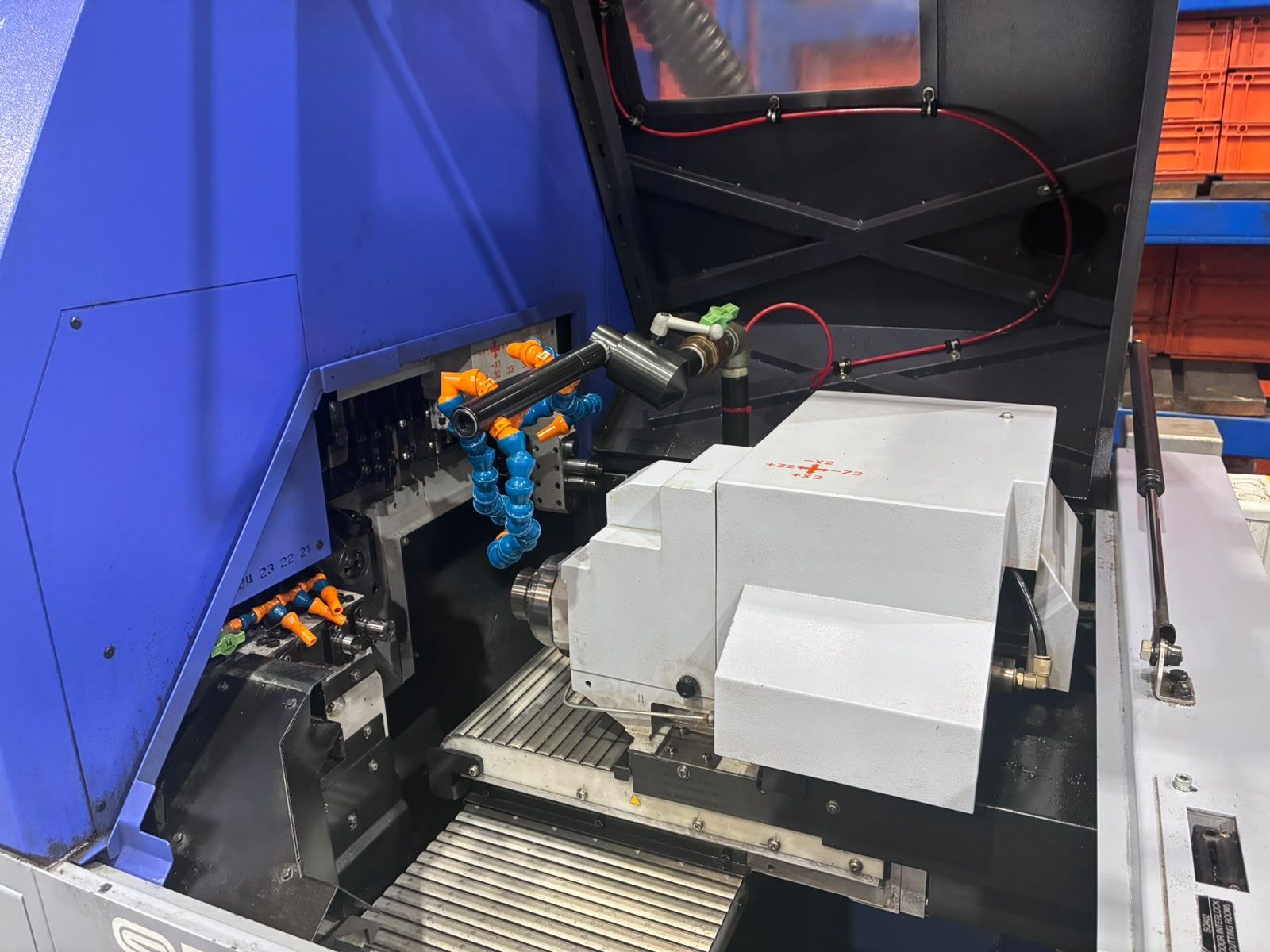

The SB-20R Type G offers flexible tooling for turning, drilling, milling and backworking operations, including:
- Up to 7 turning tools
- Cross drilling and milling
- Driven tooling
- Front and rear sleeve-holder tooling
- Backworking tooling
- Driven rear-working capability
A strong opportunity for manufacturers looking to add
proven 20 mm Star sliding-head capacity without the cost or lead time associated with purchasing new equipment.
